Standard Vertical Root Grapple
60"
$3,547.00
Sale price
$3,547.00
Regular price
Skip to product information

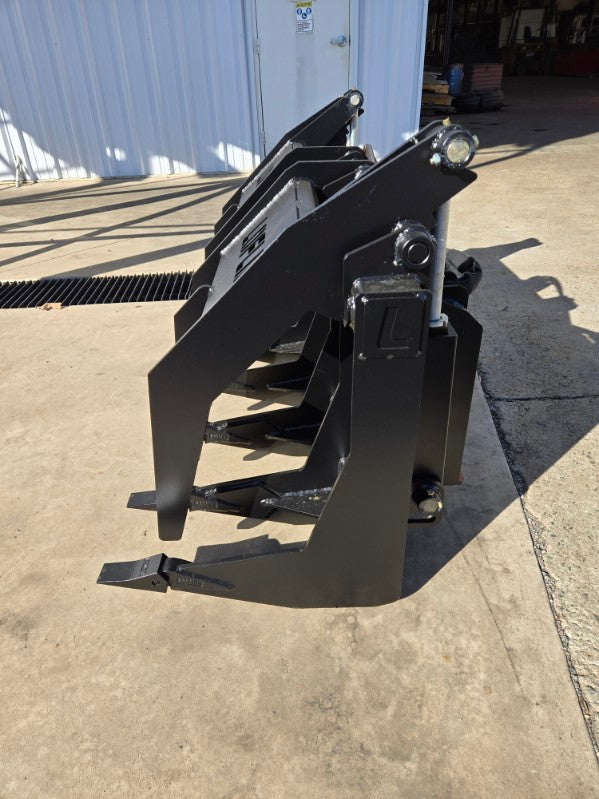

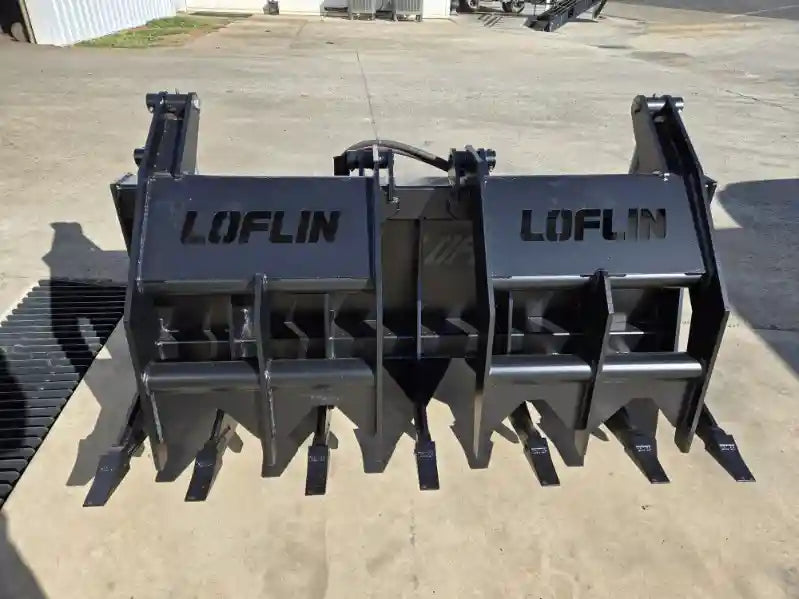

Standard Vertical Root Grapple
$3,547.00
Sale price
$3,547.00
Regular price
Details
Overview. The Standard Vertical Root Grapple works like a heavy-duty rake — the vertical clamp action sifts dirt and debris out through the tines while the grapple holds the load. Built for machines up to approximately 75 HP, it runs replaceable Pengo 2300 Series teeth and ships with Parker plumbing ready to go. Three standard widths available with custom sizing on request.
Applications
- Root and brush raking
- Soil separation and site prep
- Land clearing on mid-size machines up to ~75 HP
Core Specs
| Overall Height | 36" |
| Tine Opening Height | 54" |
| Overall Length | 33 1/2" |
| Top Tines | 1/2" |
| Bottom Tines | 1/2" |
| Frame Material | 4" Square Tubing 1/4" side wall |
| Gussets | 3/8" on Top Catch |
| Teeth | Replaceable Pengo 2300 Series |
| Tine Spacing (60") | 11 1/2" |
| Tine Spacing (66") | 10 3/4" |
| Tine Spacing (72") | 11 1/4" |
| Cylinder Size | 2" x 10" |
| Available Widths | 60", 66", 72" (custom available) |
| Recommended HP | Up to ~75 HP |
| Weight (60") | 850 lbs |
| Weight (66") | 900 lbs |
| Weight (72") | 960 lbs |
Notable Features

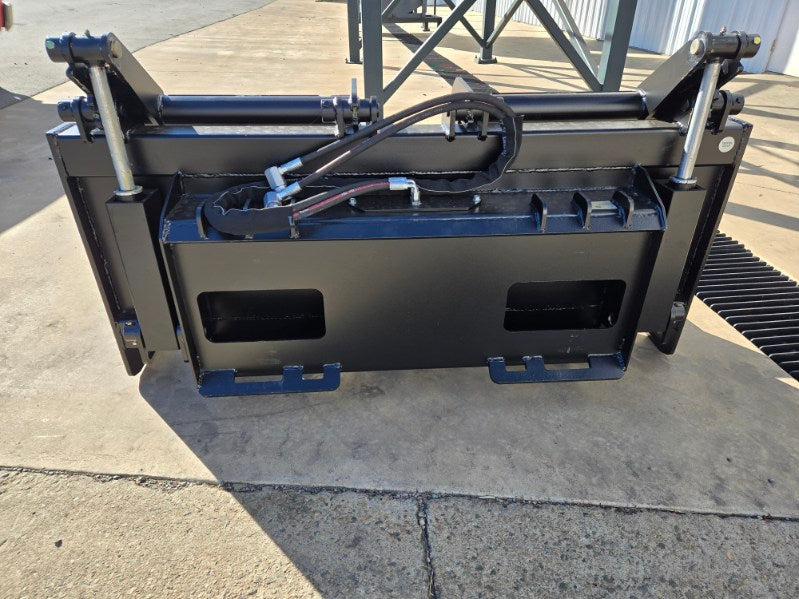

- Independent tines with reinforced quick-attach
- Protected hoses and covered cylinders; fully greaseable hinges
- Replaceable Pengo 2300 Series teeth for long-term serviceability
- Parker hoses, fittings, and couplers included
