Log Grapple
Manual Rotating
$3,372.00
Sale price
$3,372.00
Regular price
Skip to product information
Log Grapple
$3,372.00
Sale price
$3,372.00
Regular price
Details

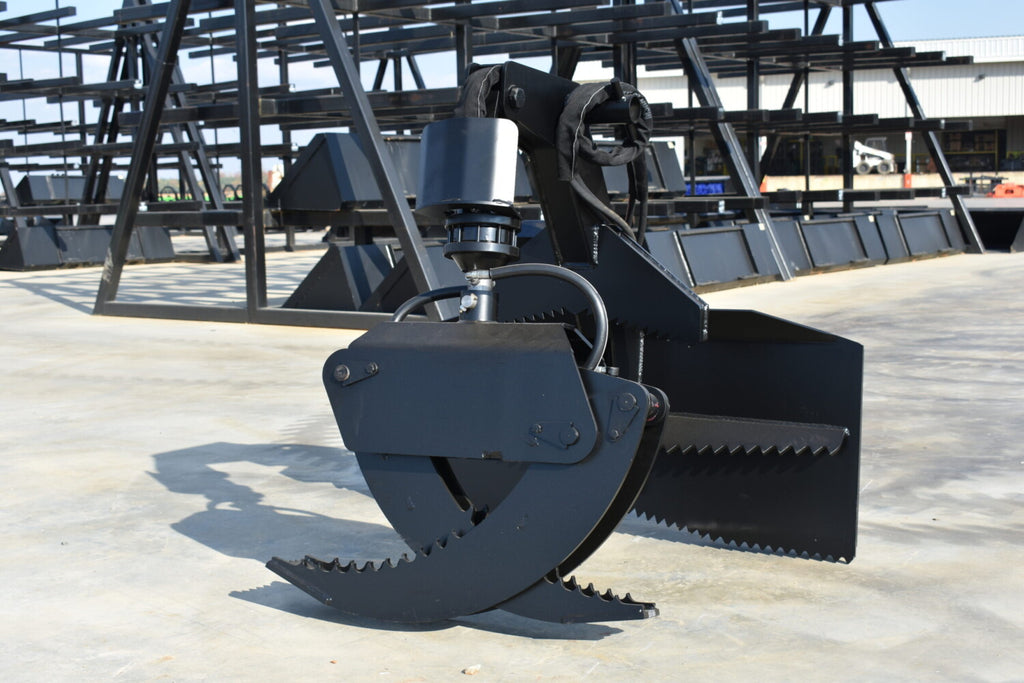

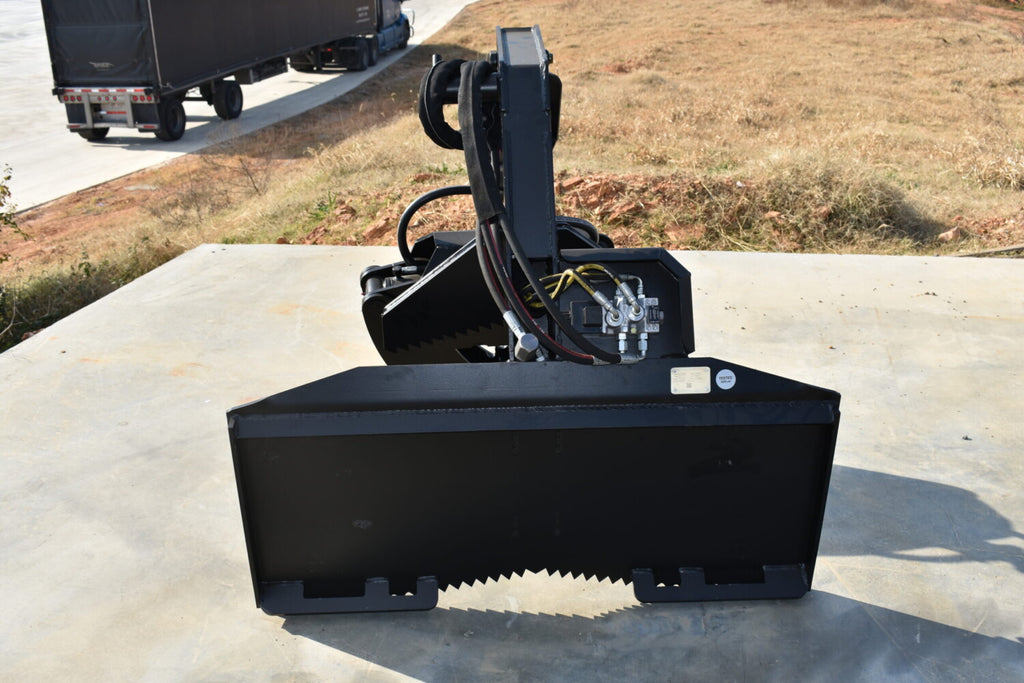

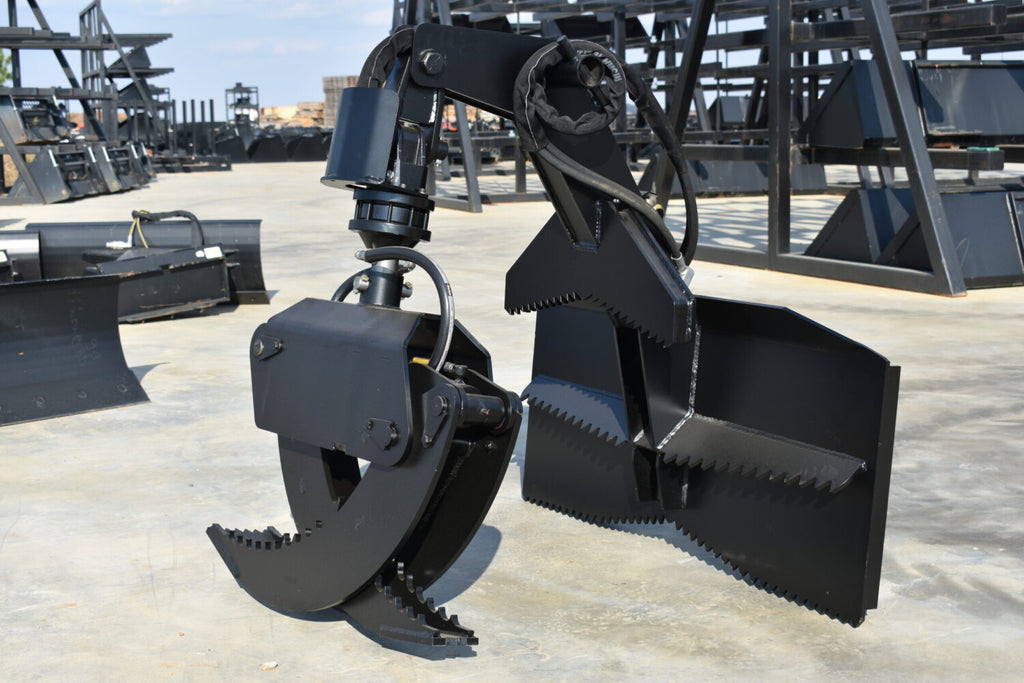

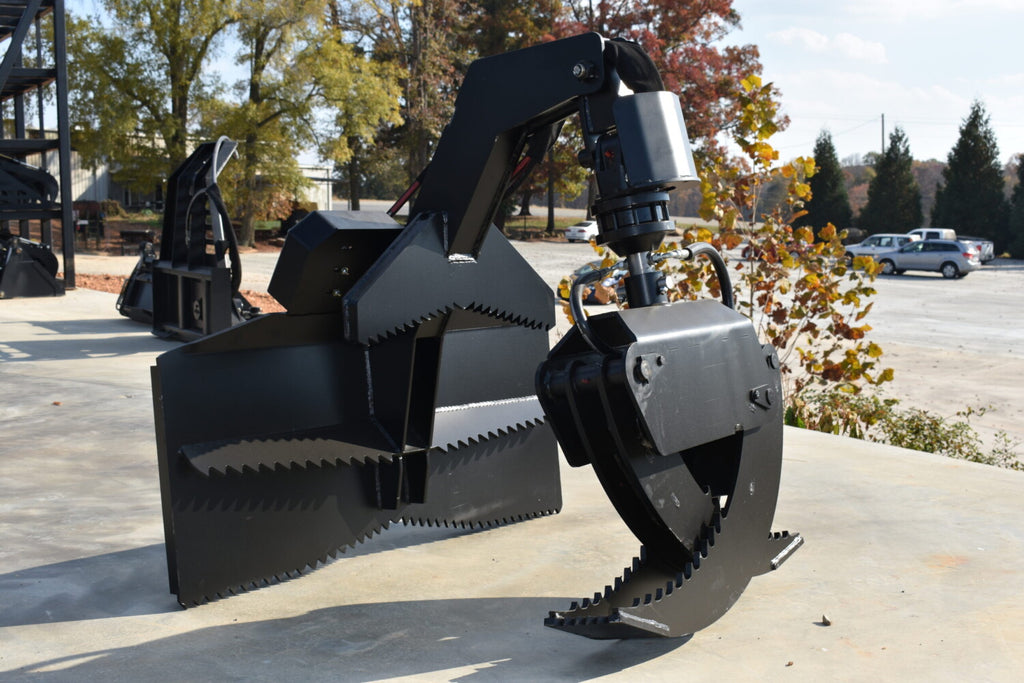

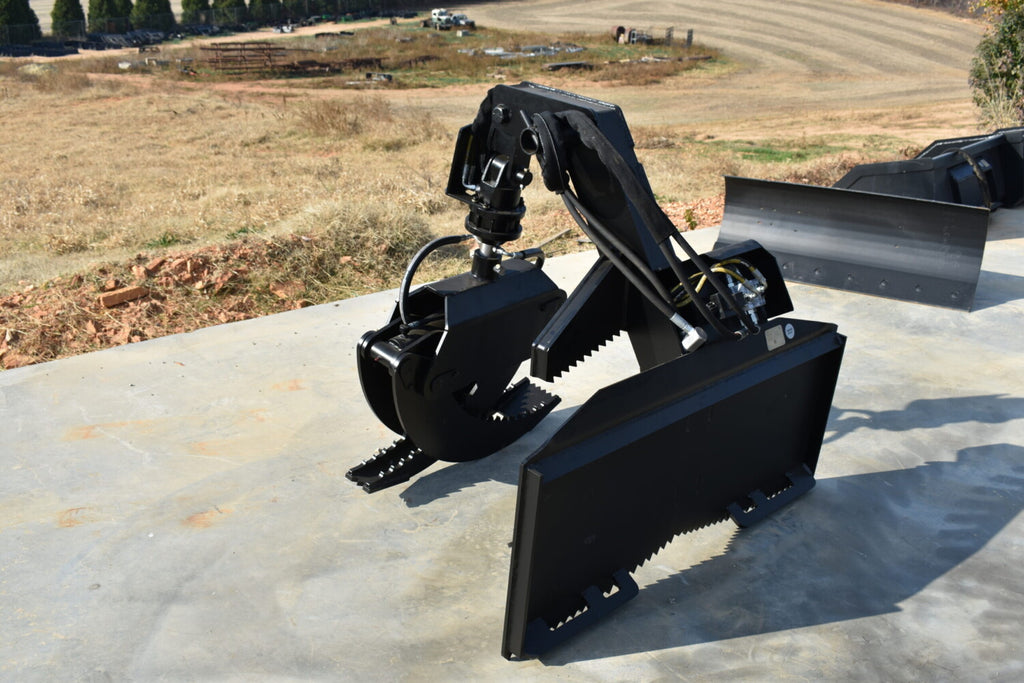

Overview. This hydraulic log grapple is purpose-built for skid steers, excavators, and other hydraulic machines handling logs, brush, stumps, and oversized bulky material. It opens to 62" and closes down to 5" for a tight grip on small logs, and delivers 9,500 lbs of grappling force at up to 3,200 psi. Serrated or smooth tines and hydraulic or manual rotation are available options.
Applications
- Log handling and loading
- Brush and debris management
- Stump removal and transport
- Bulky material handling on skid steers and excavators
Core Specs
| Opening Width | 62" |
| Closing Width | 5" |
| Grappling Force | 9,500 lbs |
| Cylinders | 2 1/2" x 8" |
| Tine Thickness | 1/2" |
| Hydraulic Pressure | 3,200 psi |
| Lift Capacity | 3,500 lbs |
| Weight | 550 lbs |
| Options | Serrated or smooth tines; hydraulic or manual rotation |
Notable Features
- Heavy-duty fully reinforced construction for long service life
- 360° hydraulic rotation or 180° manual rotation — your choice
- Serrated tines grip uneven and irregular loads with confidence
- Interlocking grapple design closes from 62" down to 5" for tight loads
- Wiring harness included with hydraulic rotation option
