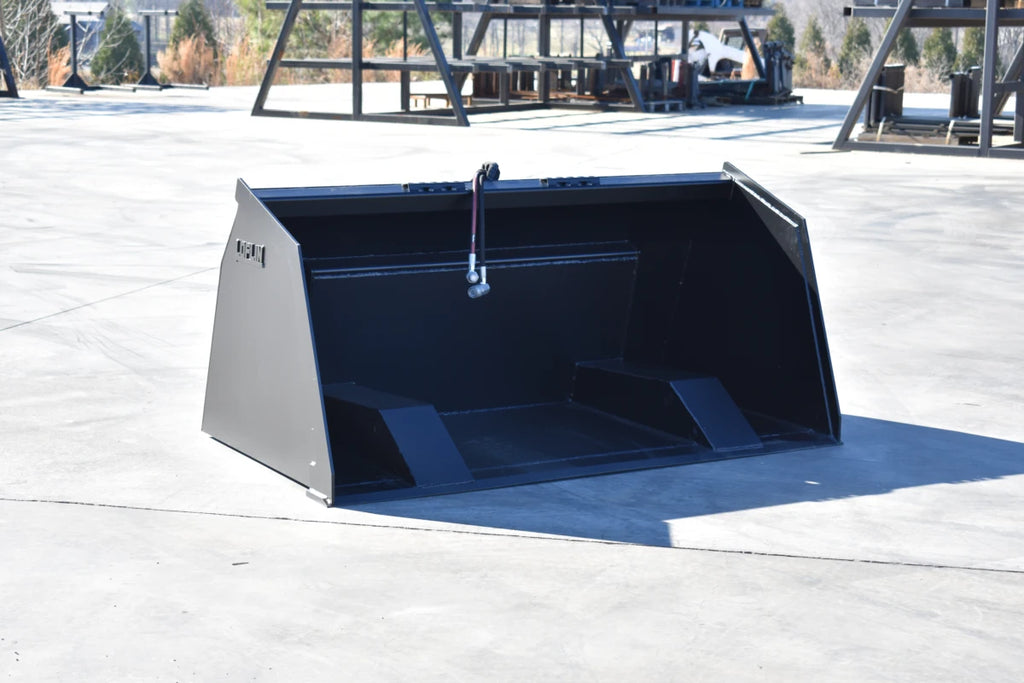

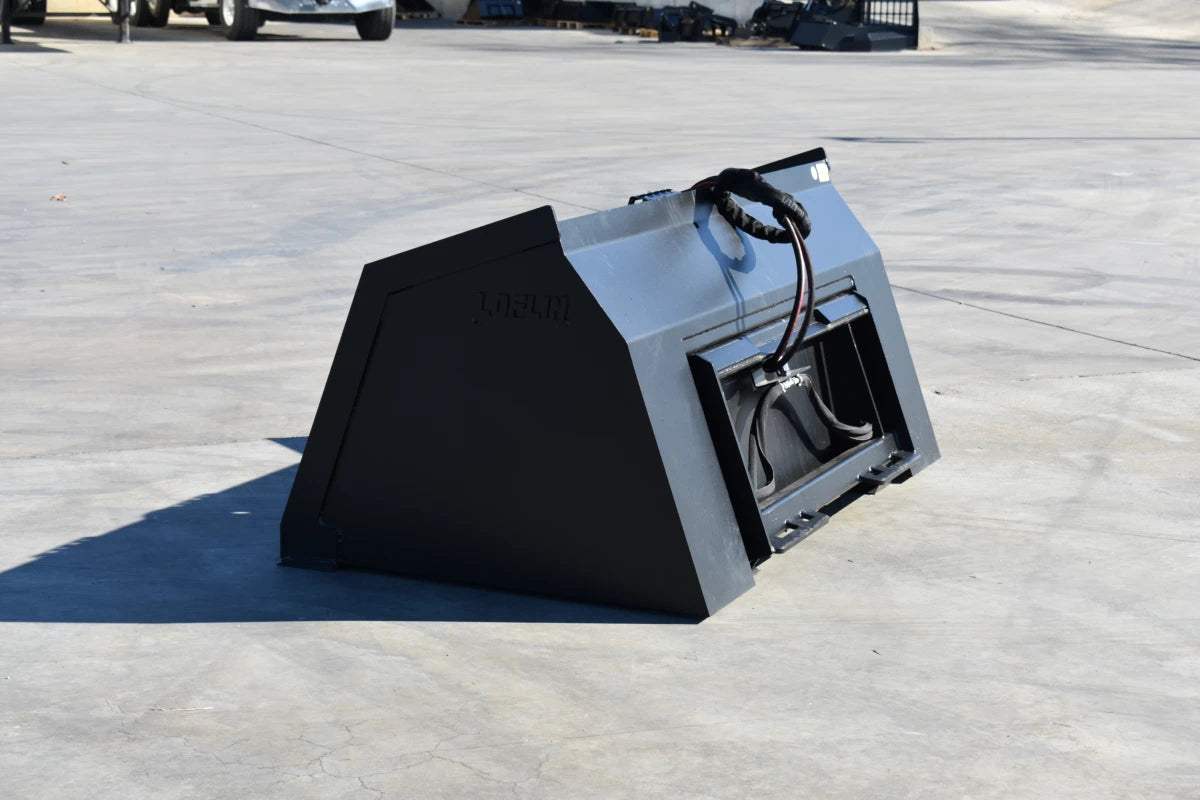

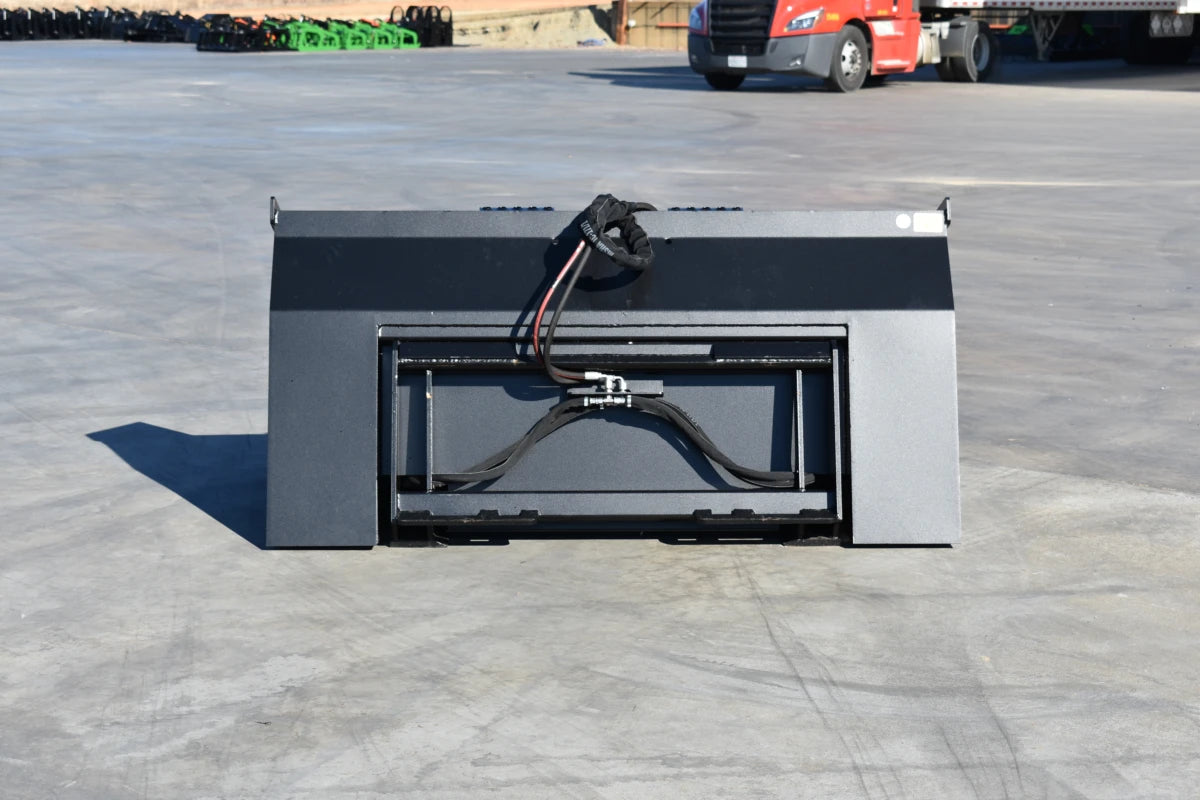

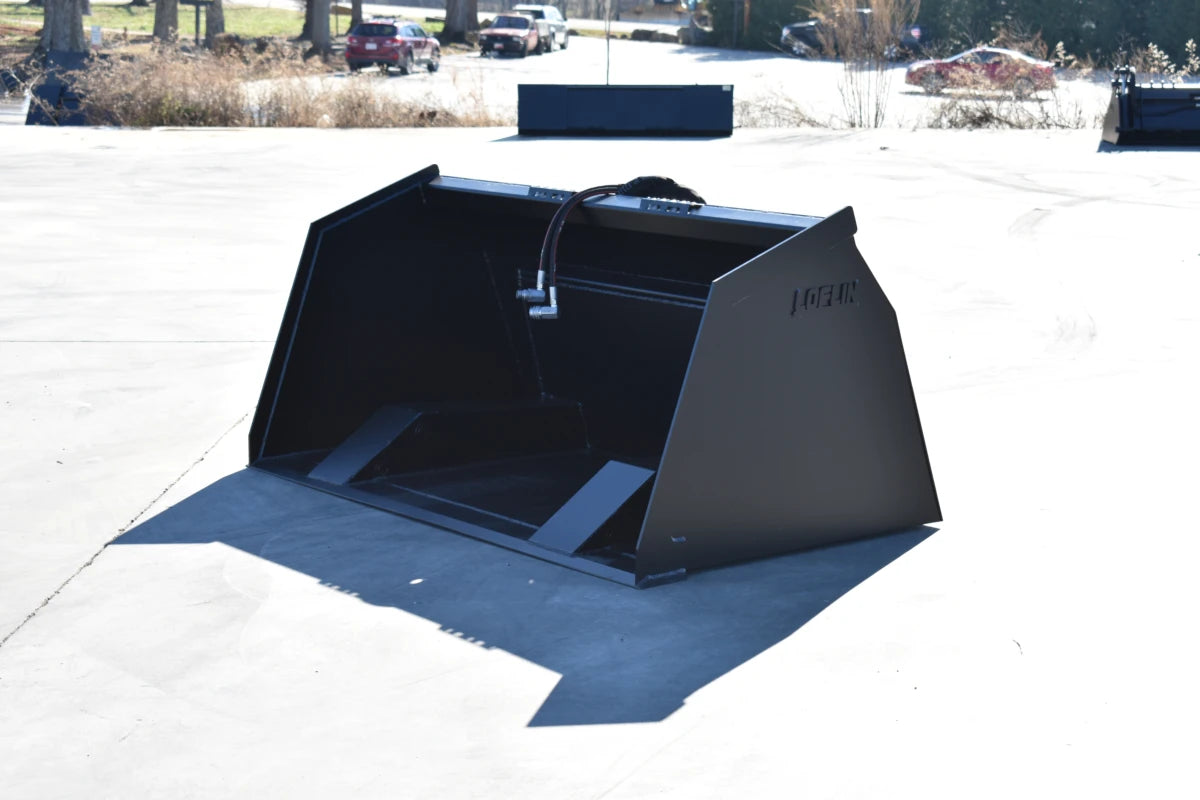

Front Dump Bucket
72"
$5,068.00
Sale price
$5,068.00
Regular price
Skip to product information
Front Dump Bucket
$5,068.00
Sale price
$5,068.00
Regular price
Details

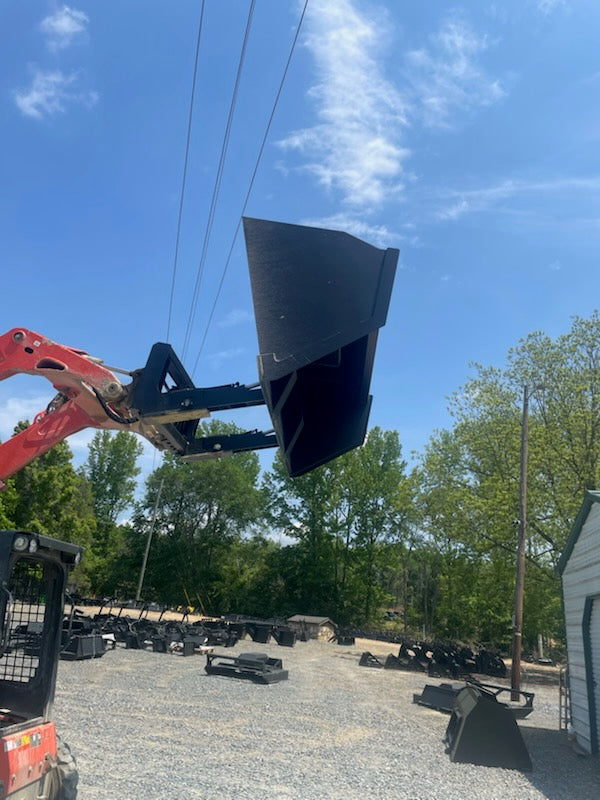

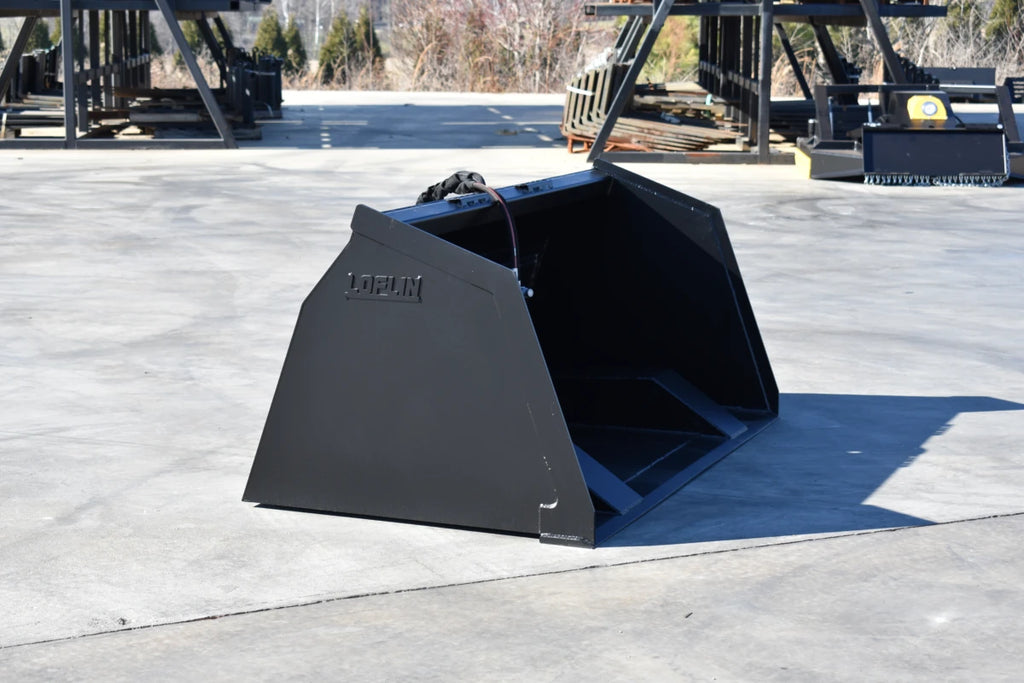

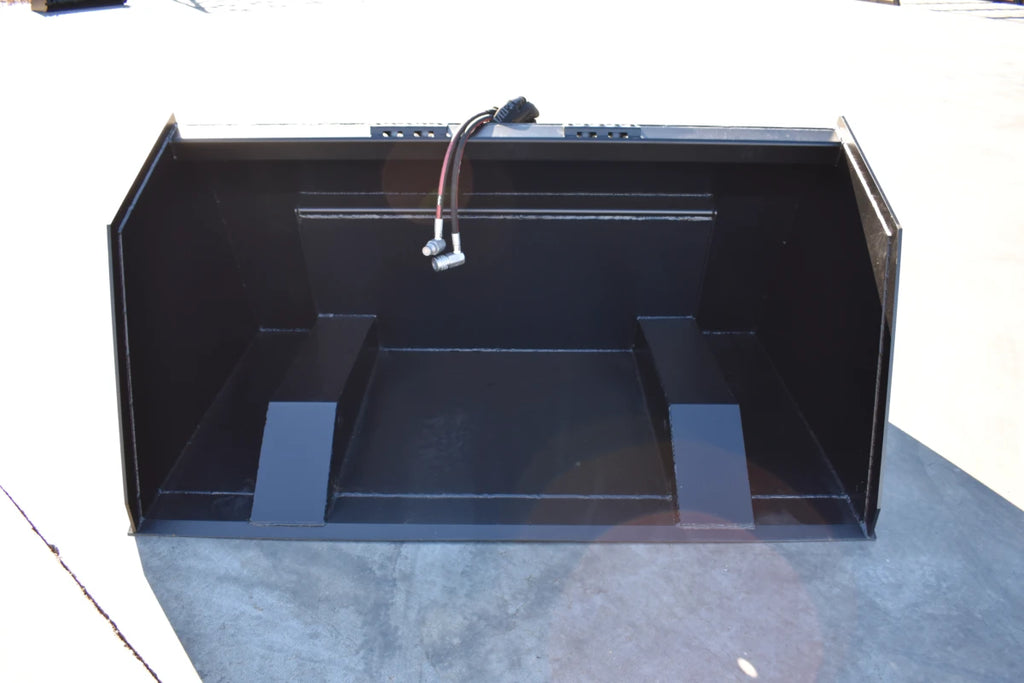

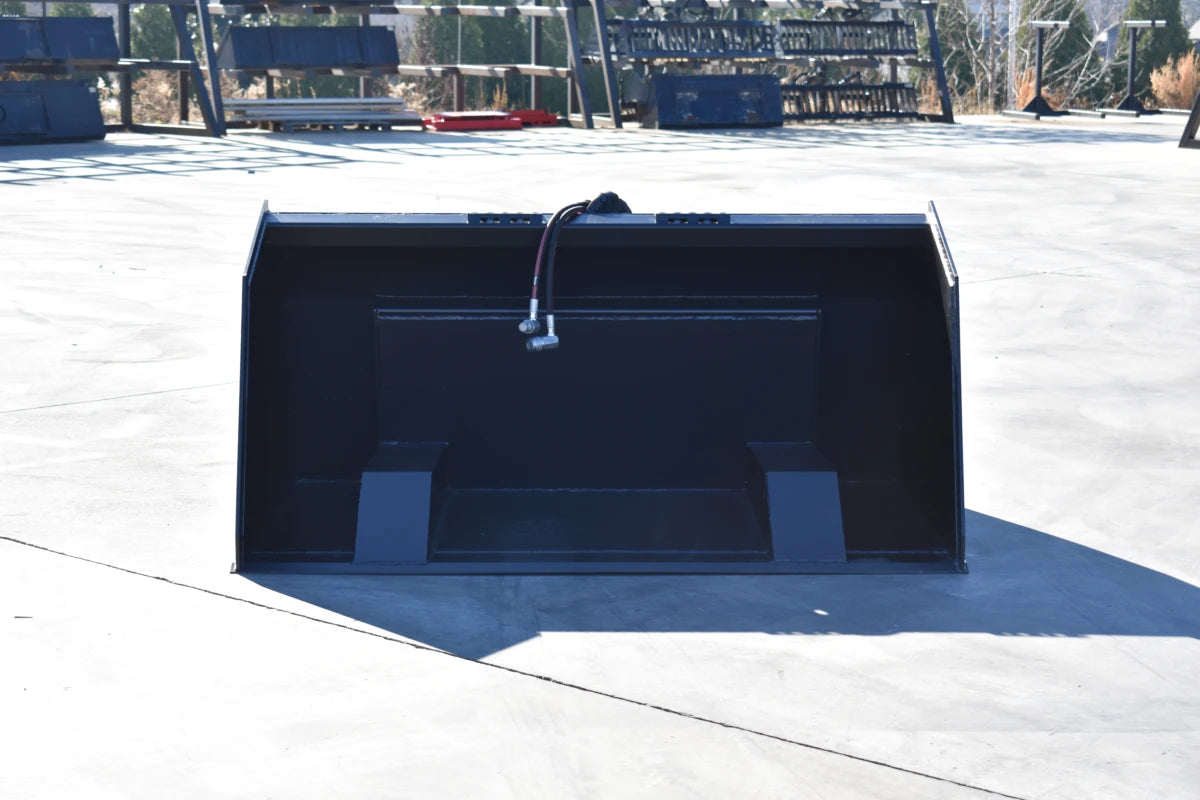

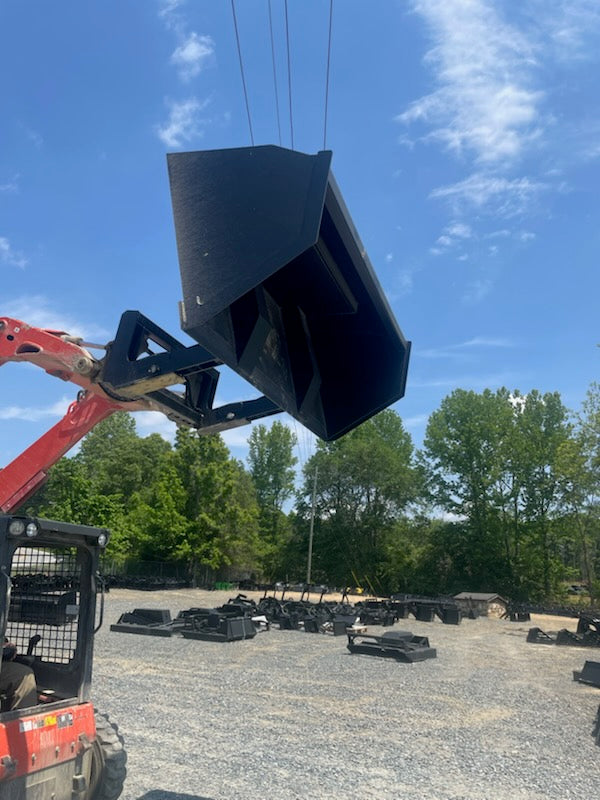

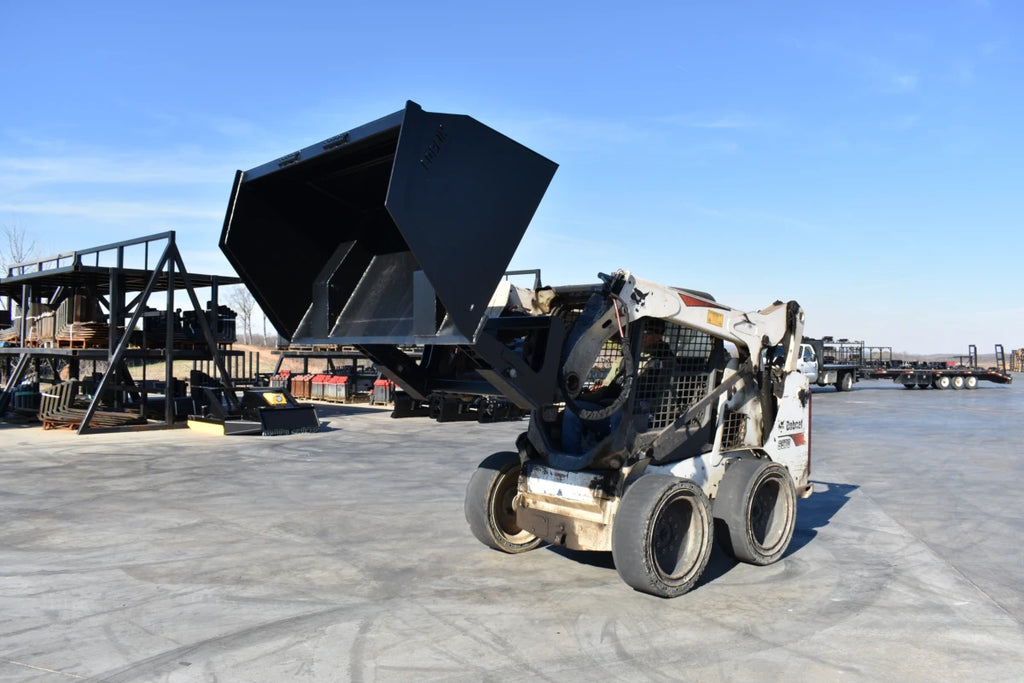

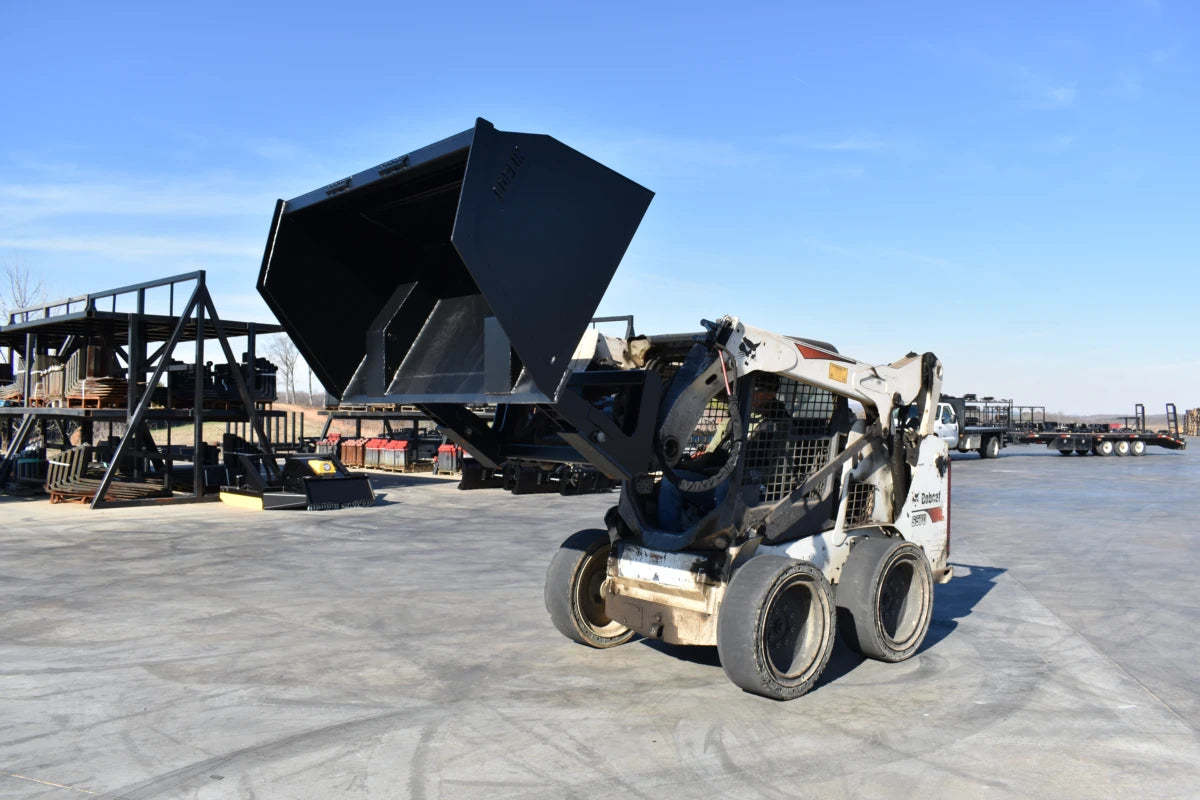

Overview. The Front Dump Bucket is forward-hinged to let you dump material into tall trucks, bins, and hoppers that a standard bucket can't clear. The hydraulic dump adds roughly 5 feet of height and 3 feet of reach, making it practical for controlled pours into forms or tight-clearance containers. Two 2″ x 10″ cylinders power the dump with heavy hinge pins and grease points throughout.
Applications

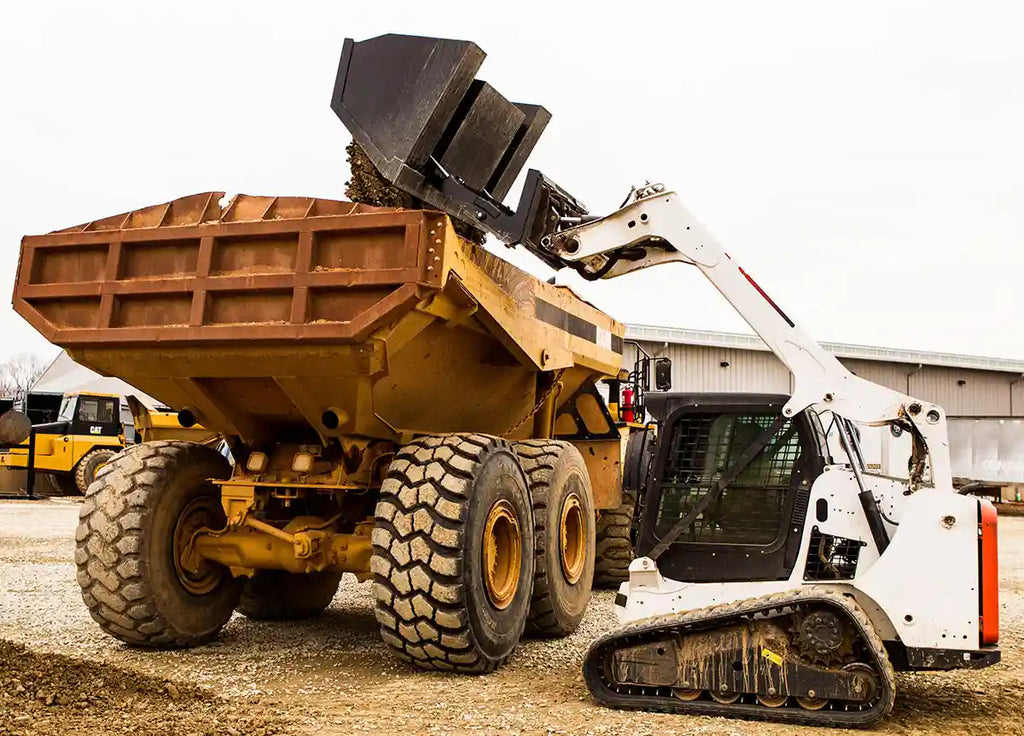

- Loading over-height trailers and bins
- Site cleanup with limited overhead room
- Precise material placement into forms or hoppers
Core Specs
| Height | 35″ |
| Overall Length | 42-3/4″ |
| Frame | 3″ Square Tubing, 1/4″ Sidewall |
| Bucket Wrap | 3/16″ |
| Side Plates (Main Frame) | 1/4″ |
| Cutting Edge | 3/4″ × 6″ |
| Cylinders | 2″ × 10″ |
| Capacity (Struck) | 72″ (1.270 cu yd), 78″ (1.392 cu yd), 84″ (1.515 cu yd), 96″ (1.760 cu yd) |
| Weight | 72″ (935 lbs), 78″ (965 lbs), 84″ (1,009 lbs), 96″ (1,100 lbs) |
Notable Features

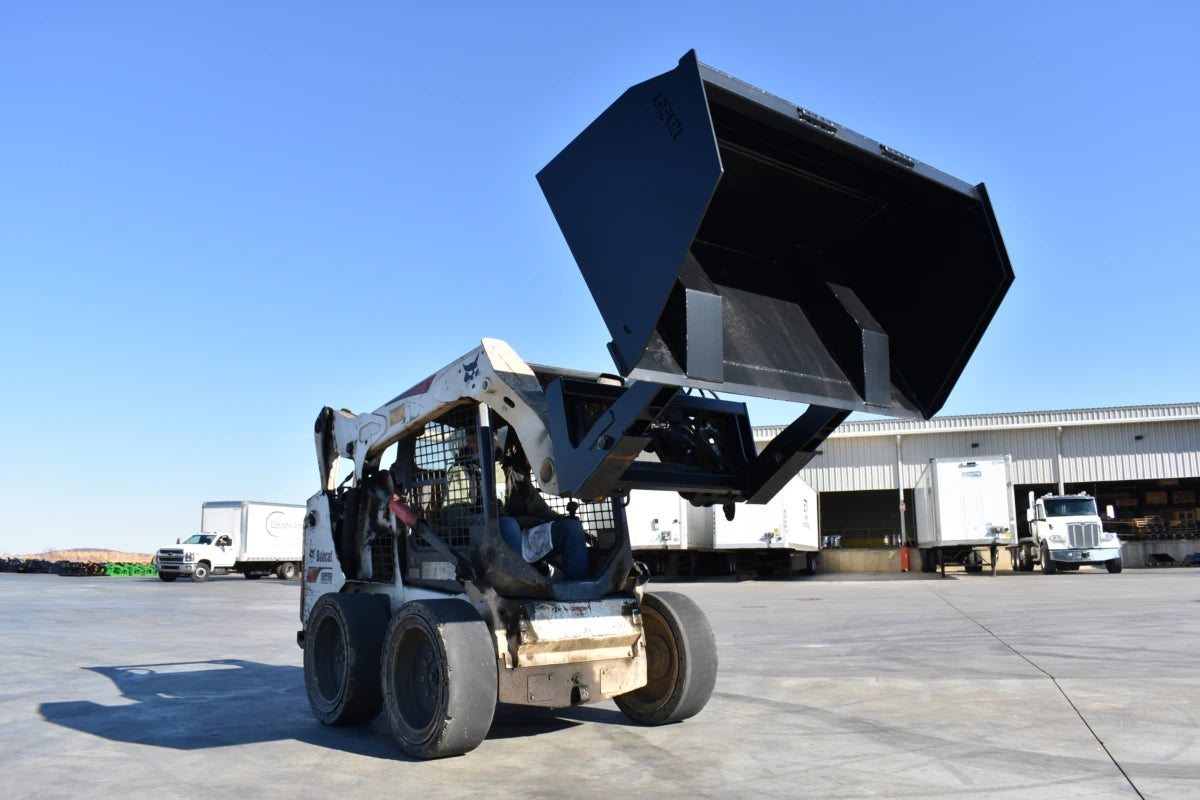

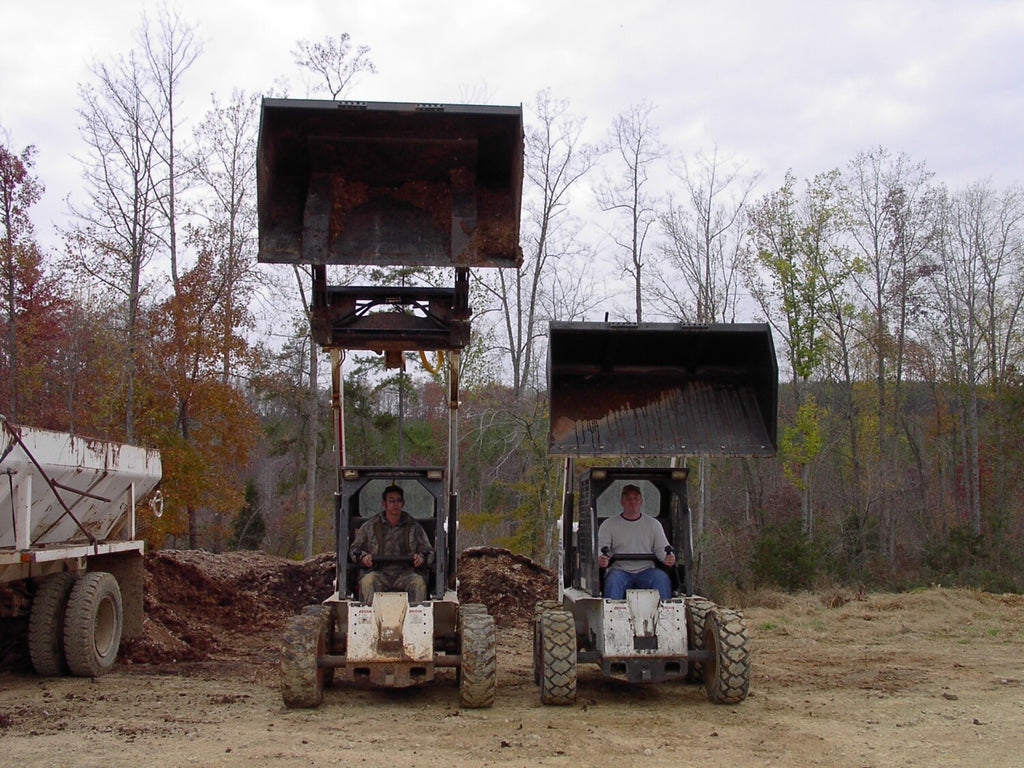

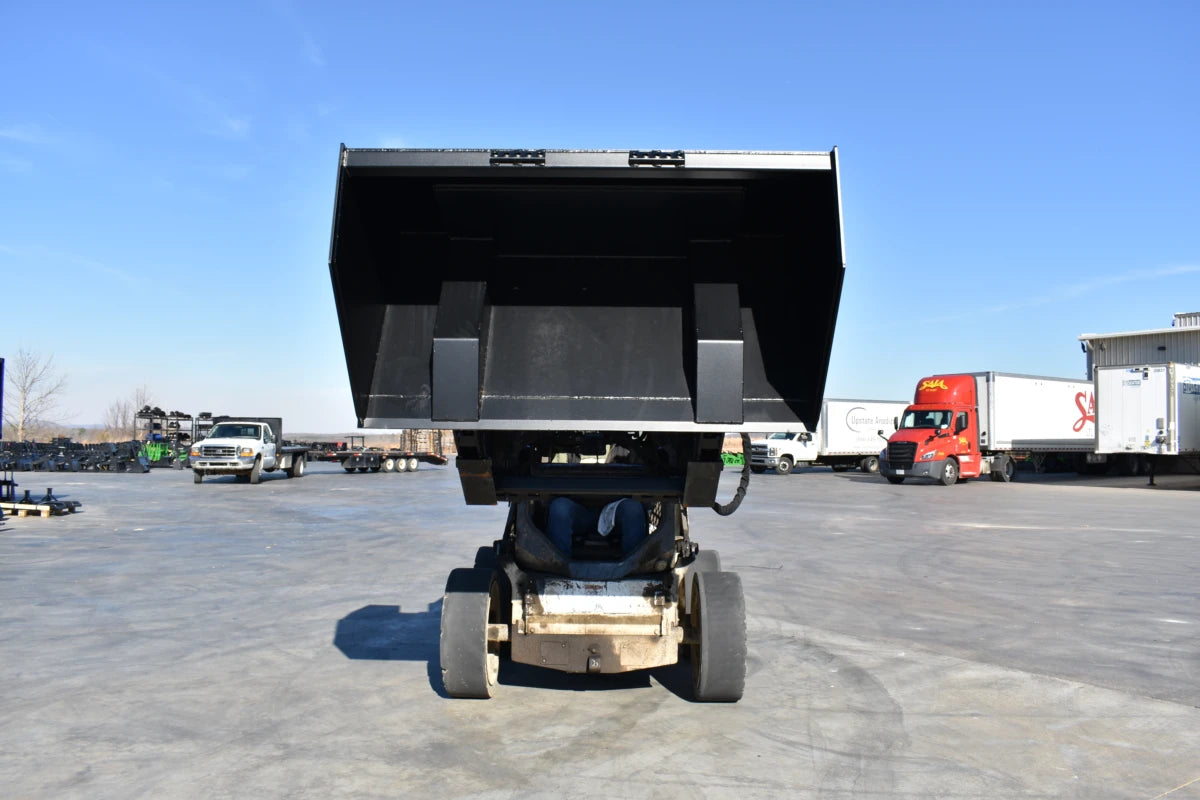

- Adds approximately 5 feet of dump height and 3 feet of reach
- Heavy hinge pins with grease points
- Stable geometry for controlled, precise dumps
