Details

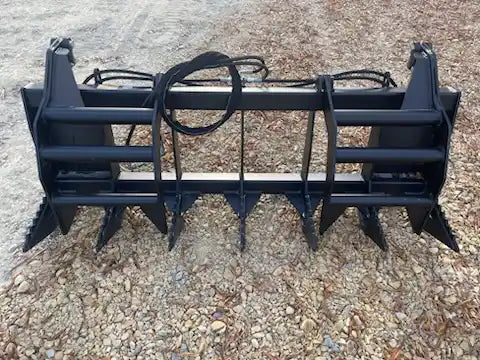

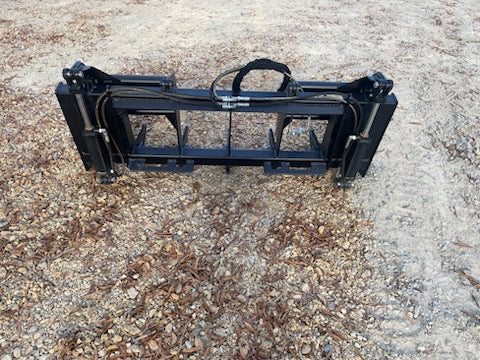

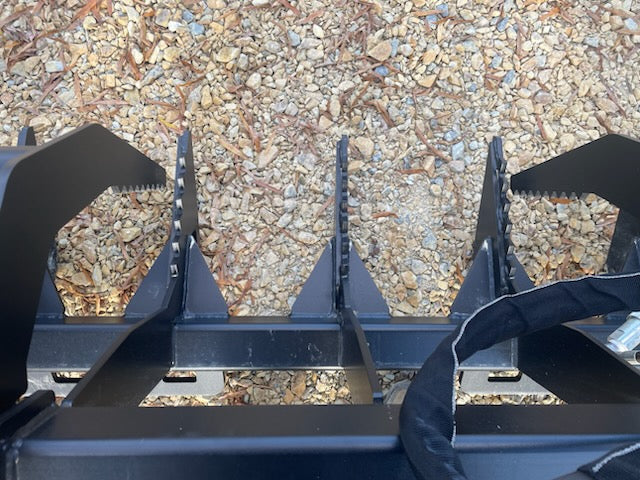

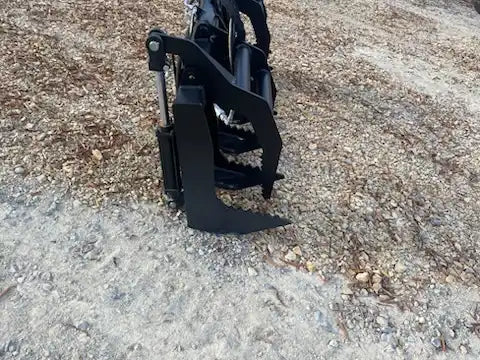

Overview. The Compact Tractor Vertical Root Grapple uses a vertical clamp action over rake-style tines to comb through roots and brush while letting soil drop back to the ground. Designed for compact tractor geometry, it gives the operator better sightlines and curl control with a loaded rake. Available in 60", 66", and 72" widths.
Applications
- Root combing and extraction
- Brush and debris control
- Soil separation and site cleanup on compact tractors
Core Specs
| Overall Height | 31 3/8" |
| Overall Length | 19" |
| Cylinders | 2" x 8" |
| Tine Thickness (Top) | 3/8" |
| Tine Thickness (Bottom) | 3/8" |
| Tine Thickness (Sides) | 3/8" |
| Tine Thickness (Gussets) | 3/8" |
| Opening | 33 1/4" |
| Tubing | 3" Square Tubing |
| Tine Spacing | ~9" – 12" |
| Stock Widths | 60", 66", 72" |
| Weight | 348 – 414 lbs (by width) |
Notable Features
- Rake action combs debris and leaves soil behind
- Compact-tractor geometry for better visibility and clamp control
- Reinforced quick-attach; greaseable pivots throughout
- Protected hoses and covered cylinders
